Summary
Cordierite-Mullite combines low thermal expansion of cordierite and high refractoriness & rupture strength of mullite, its main mineral constituent is cordierite, mullite & glass phases. Cordierite-mullite became to be a modern refractory material original from Europe. It is used widely to fire ceramics products under 1,300℃, i.e. tableware, sanitary ware, powder calcination, porcelain insulator, it is used to build up both kiln car and kiln lining as well for low thermal mass and clean lining.
Products
The cordierite-mullite can be formed by various ways and so into various shapes to suit its applications.
| 1. Batts, Shelves, Slab - For basic loading area or insulation surface etc. |
 |
 |
 |
|
Semi-dry Hydraulic Pressing Batt |
Vacuum Extrusion Batt |
Slip Casting Batt |
| 2. Supports & Setters - For basic supporting or keeping shape of fired products etc. |
 |
 |
 |
|
Sanitary ware Support & Setter |
Fitting Cap/Splicer |
Support |
 |
 |
|
|
Plate Setter |
Tiles Setter |
|
| 3. Saggers & Crucibles - For powder calcination, smetling metal or close firing etc. |
 |
 |
|
|
Saggars |
Jiggering Crucibles |
|
| 4. Kiln Lining and Kiln Car Insulation Parts - For kiln car and lining insulation etc. |
 |
 |
 |
|
Kiln Lining Parts |
Hollow Blocks |
Motar Free Bricks |
We listed only one or two typical products for each type of product here, for more information about sizes and shapes of our cordierite-mullite furniture, please contact with our engineers freely. |
|
|
|
Tableware
|
Cordierite-mullite kiln furniture is used world widely for firing potteries, porcelain & bone china. It can be used as primary kiln furniture for basic loading and also can be formed into the shape of loaded pieces to guarantee the shape of wares after firing.
Typical Product：Plain Batt, Perforated Batt, Grooved Batt, Cubic Support, I Shape Support, Adjustable Support, Round Support, Rhombus Support, TFS System, Pin Cranks System, Profile Setter & Cup Rings
Suited Kiln: Tunnel Kiln, Shuttle Kiln, Roller Kiln, Rotary Kiln |
|
Sanitary ware
|
The excellent thermal shock resistance of cordierite-mullite makes it well suited to the fasting cooling stage during sanitary ware firing. Cordierite-mullite batts combines SiSiC beams is a typical kiln car structure in most of sanitary ware plants now which provides relative more useful space and lower fuel consumption. Shaped cordierite-mullite setters provide well shaped supporting to the fired pieces.
Typical Product: Extruded Batt, Plain Batt, Hollow Support, Firing Setters & Supports (Casting Stools, X-Shaped supports etc.)
Suited Kiln: Tunnel Kiln, Shuttle Kiln, Roller Kiln； |
|
Powder Calcination
|
Cordierite-mullite can be used to produce fine kiln refractories for the powder calcination process which brings good performance and cost benefit.
Typical Product: Round, Square or Special Saggar, Plain Batts, Extruded Batts, Extruded Support & I Shape Support;
Suited Kiln: Tunnel Kiln, Shuttle Kiln, Roller Kiln, Pushing batts kiln & Belt kilns
|
|
Porcelain Insulator
|
The low mass design with cordierite-mullite kiln furniture used widely to fire low voltage porcelain insulator under 1,300℃ especially for improving the loading efficiency of small pieces. This system provides lower investment cost & lower fuel consumption comparing with traditional Silicon Carbide kiln furniture for insulator firing.
Typical Products: Extruded Batt, Plain Batt, Rhombus Support, Square Support, Fitting Cap & Splicer；
Suited Kiln: Tunnel Kiln, Shuttle Kiln, |
|
Kiln Insulations |
With the specialized design and flexible forming process, the cordierite-mullite can be used as refractories to build up both kiln lining and kiln cars surroundings instead of traditional castable or shaped refractories, it will provide complete clean lining, low thermal mass insulation, long service time, low & easier maintenance. For more information on this, please see SERVICE+
Typical Product: Hanging Rail, Hanging Crank, Cover Batt, Flue Tube, Roller Brick, Extruded Perimeter Block & Mortar Free Brick
Suited Kiln: Tunnel Kiln, Shuttle Kiln & Roller Kiln, Pizza Oven etcs. | |
|
|

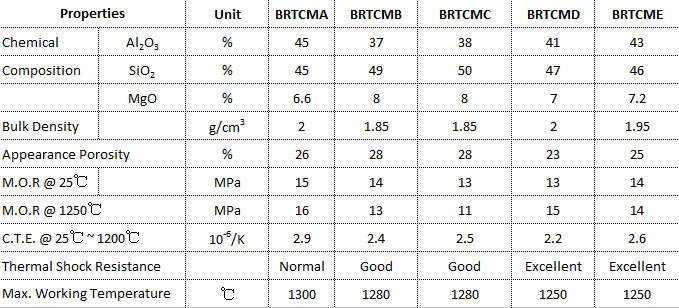

Here are the typical properties of our cordierite-mullite kiln furniture, it needs to be selected carefully according to firing condition of each application.
The data above came from daily checking of productions, it is for reference only. |
|
|
|
